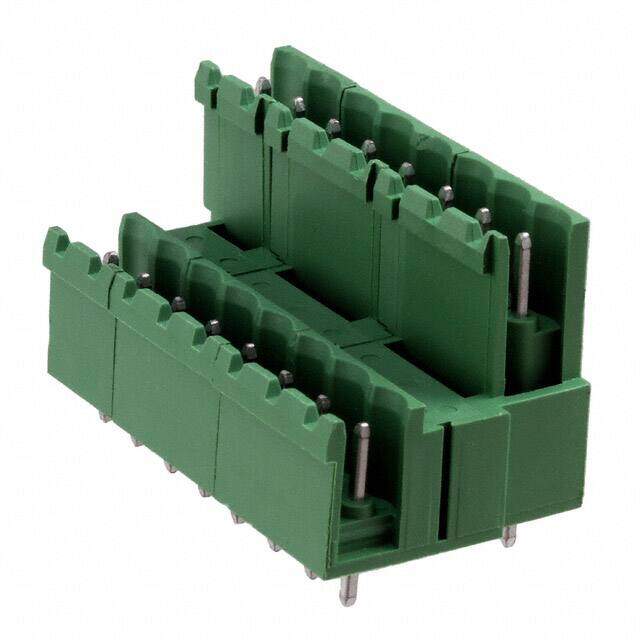

1845992
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $8.83
Unit Price: USD $8.829746
≥1 USD $8.829746
≥10 USD $8.329946
≥100 USD $7.858447
≥500 USD $7.413628
≥1000 USD $6.99398
Inventory: 1326
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 3mm
Technical
Current - IEC 10A
Header Orientation Vertical
Safety Approval UL; CSA
Number of Ways 8
Positions Per Level 8
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Current 12A
Number of Levels 2
Contact Tail Length 0.154 3.90mm
Voltage 300V
Termination Style Solder
Current Rating 10A
Insulation Height 0.870 22.10mm
Depth 3mm
Pitch 0.197 5.00mm
Additional Feature PBT
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Green
Number of Positions 16
Type Header, Male Pins, Shrouded (2 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MDSTBV
Published 2011
Packaging Bulk
Physical
Weight 11.450004g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
