1845798
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

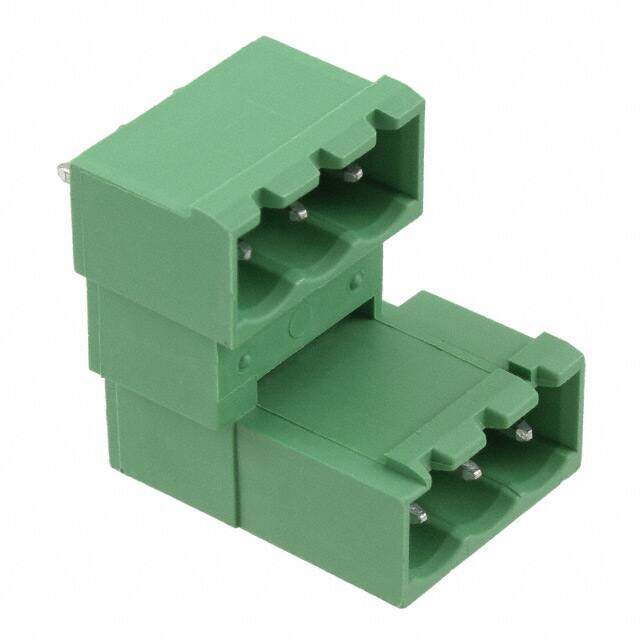

Pluggable Terminal Blocks 3 Pos 5mm pitch Through Hole Header
PDF
/
Inventory: 1165
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 4.679996g
Technical
Packaging Bulk
Published 2014
Series COMBICON MDSTBVA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 6
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, 94V-0
Pitch 0.197 5.00mm
Insulation Height 0.870 22.10mm
Reach Compliance Code unknown
Current Rating 10A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Number of Levels 2
Current 12A
Number of Decks 1
Voltage - IEC 400V
Positions Per Level 3
Number of Ways 3
Safety Approval UL
Header Orientation Vertical
Current - IEC 10A
Dimensions
Height 23.7mm
Length 19.5mm
Width 26mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
