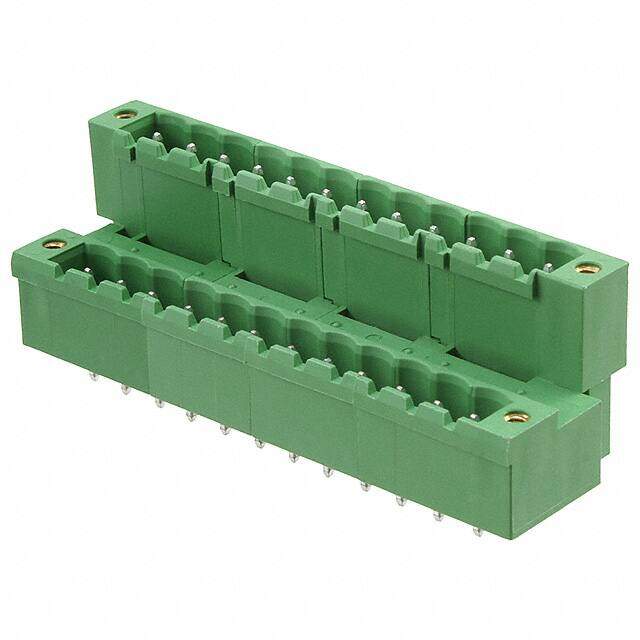

1845730
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 12 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $12.44
Unit Price: USD $12.4355
≥1 USD $12.4355
≥10 USD $10.20395
≥100 USD $9.88475
≥500 USD $9.5665
≥1000 USD $9.2473
Inventory: 54
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 600.102706g
Technical
Packaging Bulk
Published 2010
Series COMBICON MDSTBV
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 24
Color Green
Number of Rows 2
Voltage - Rated 250V
Additional Feature STANDARD: UL 94V-0; PBT
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.870 22.10mm
Current Rating 10A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Number of Levels 2
Current 12A
Number of Decks 2
Voltage - IEC 400V
Positions Per Level 12
Number of Ways 12
Safety Approval UL; VDE
Header Orientation Vertical
Current - IEC 10A
Dimensions
Height 26mm
Length 23.7mm
Width 73.66mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
