RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

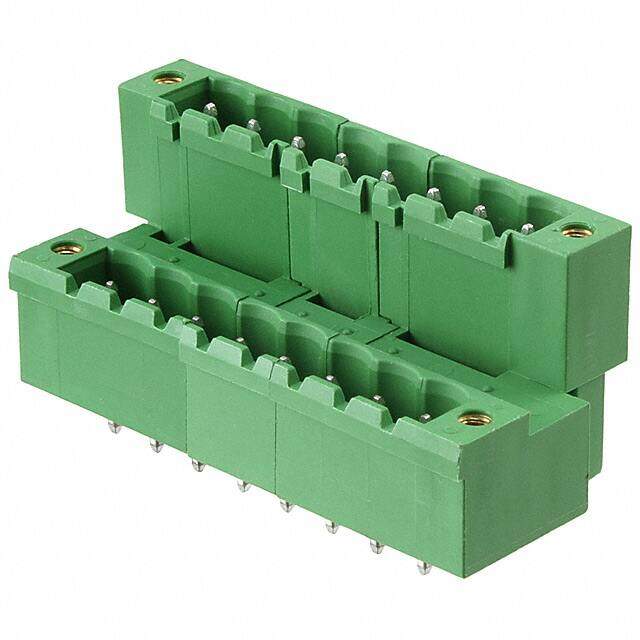

Description Pluggable Terminal Blocks 8 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $15.75
Unit Price: USD $15.752
≥1 USD $15.752
≥10 USD $15.32168
≥100 USD $14.31936
≥500 USD $13.173864
≥1000 USD $12.9272
Inventory: 23
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 53.34mm
Length 23.7mm
Height 26mm

Technical

Current - IEC 10A
Header Orientation Vertical
Safety Approval UL
Number of Ways 8
Positions Per Level 8
Voltage - IEC 400V
Number of Decks 1
Current 12A
Number of Levels 2
Contact Tail Length 0.154 3.90mm
Voltage 300V
Termination Style Solder
Current Rating 10A
Insulation Height 0.870 22.10mm
Pitch 0.200 5.08mm
Additional Feature PBT, 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 16
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON MDSTBV
Published 2010
Packaging Bulk

Physical

Weight 15.340012g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
