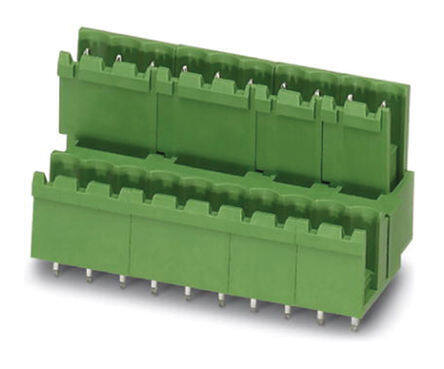

1845549
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $6.24
Unit Price: USD $6.2392
≥1 USD $6.2392
≥10 USD $6.0676
≥100 USD $5.67072
≥500 USD $5.21708
≥1000 USD $5.119418
Inventory: 96
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 11.399995g
Technical
Packaging Bulk
Published 2011
Series COMBICON MDSTBV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 16
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT
Pitch 0.200 5.08mm
Orientation Straight
Depth 23.7mm
Insulation Height 0.870 22.10mm
Current Rating 10A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 10A
Number of Levels 2
Current 12A
Number of Decks 1
Voltage - IEC 400V
Positions Per Level 8
Number of Ways 8
Safety Approval UL; CSA
Header Orientation Vertical
Dimensions
Height 28.5mm
Length 43.18mm
Width 43.18mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
