1845374
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

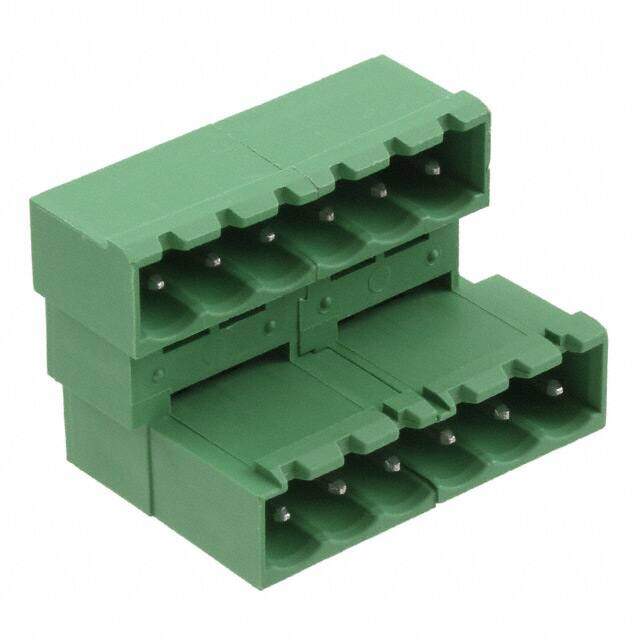

Pluggable Terminal Blocks 6 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $5.9
Unit Price: USD $5.9048
≥1 USD $5.9048
Inventory: 89
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 8.929986g
Technical
Packaging Bulk
Published 2010
Series COMBICON MDSTBVA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 12
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, 94V-0
Pitch 0.200 5.08mm
Insulation Height 0.870 22.10mm
Current Rating 10A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Number of Levels 2
Current 12A
Number of Decks 1
Voltage - IEC 400V
Positions Per Level 6
Number of Ways 6
Safety Approval UL
Header Orientation Vertical
Current - IEC 10A
Dimensions
Height 26mm
Length 23.7mm
Width 35.02mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
