1845112
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

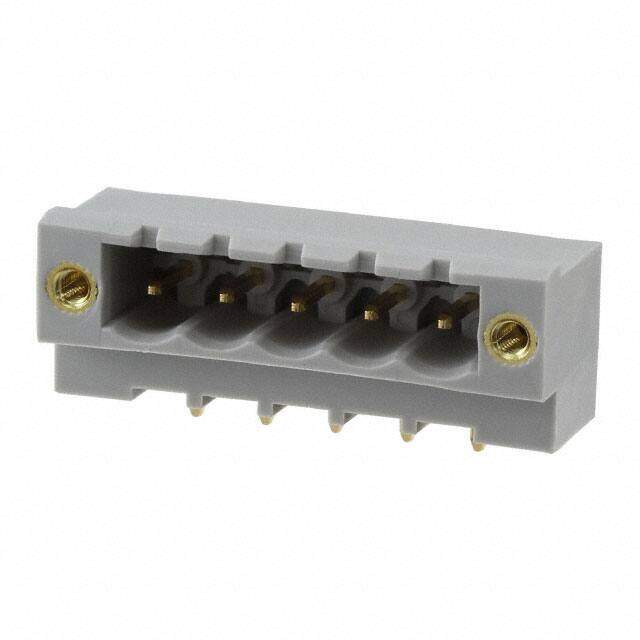

Pluggable Terminal Blocks 5 Pos 5.08mm pitch Through Hole Header
PDF
/
Inventory: 961
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Packaging Bulk
Published 2011
Series COMBICON MSTBW
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 5
Color Gray
Number of Rows 1
Voltage - Rated 250V
Pitch 0.200 5.08mm
Orientation Right Angle
Current Rating 12A
Termination Style Solder
Housing Color Grey
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 15A
Contact Mating Finish Gold
Number of Decks 1
Voltage - IEC 400V
Number of Ways 5
Header Orientation 90°, Right Angle
Number of Positions Per Level 5
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
