1844659
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

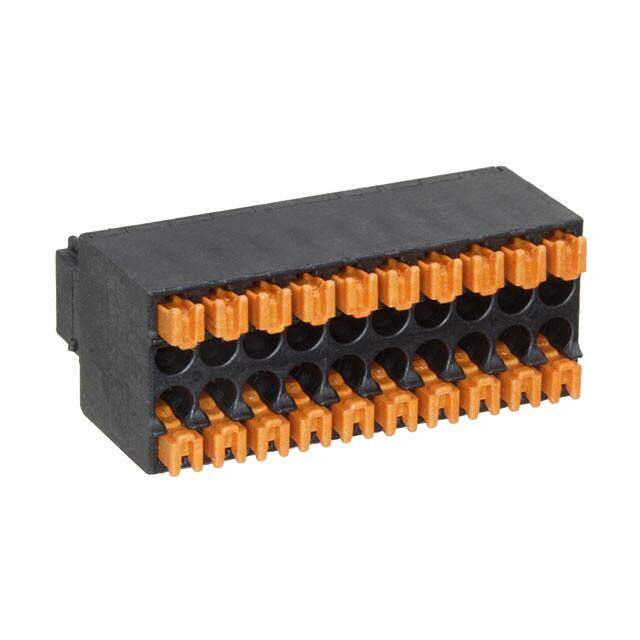

TERM BLOCK PLUG 20POS STR 2.54MM
PDF
/
Buying Options
Total Price: USD $11.19
Unit Price: USD $11.1936
≥1 USD $11.1936
Inventory: 151
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Technical
Packaging Bulk
Published 2015
Series COMBICON DFMC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Plug, Female Sockets
Number of Positions 20
Color Black
Pitch 0.100 2.54mm
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 150V
Number of Levels 2
Current 6A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 20 AWG
Contact Mating Finish Gold
Wire Gauge or Range - AWG 20-26 AWG
Voltage - IEC 160V
Positions Per Level 10
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-0.5mm2
Compliance
RoHS Status RoHS Compliant
