1844633
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

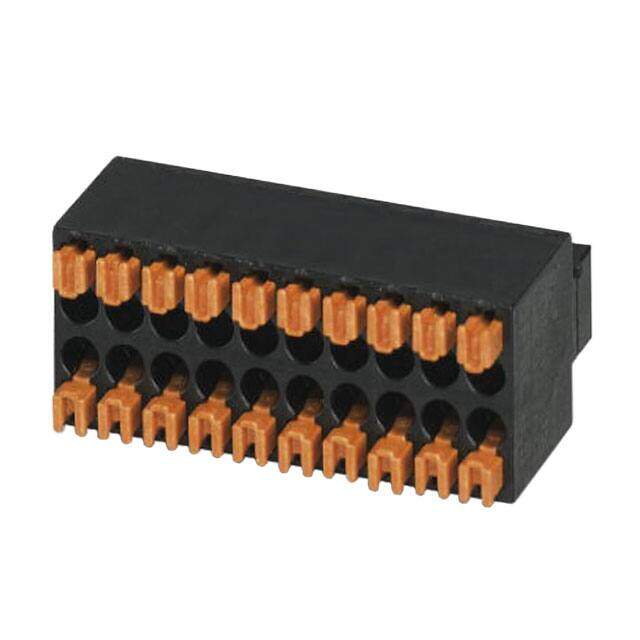

COMBICON DFMC RoHS Compliant 2015 Gold Terminal Block Plug, Female Sockets 26AWG 180° 6A 150V
PDF
/
Buying Options
Total Price: USD $8.96
Unit Price: USD $8.9584
≥1 USD $8.9584
Inventory: 467
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Technical
Packaging Bulk
Published 2015
Series COMBICON DFMC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Plug, Female Sockets
Number of Positions 16
Color Black
Pitch 0.100 2.54mm
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 150V
Number of Levels 2
Current 6A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 20 AWG
Contact Mating Finish Gold
Wire Gauge or Range - AWG 20-26 AWG
Voltage - IEC 160V
Positions Per Level 8
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-0.5mm2
Compliance
RoHS Status RoHS Compliant
