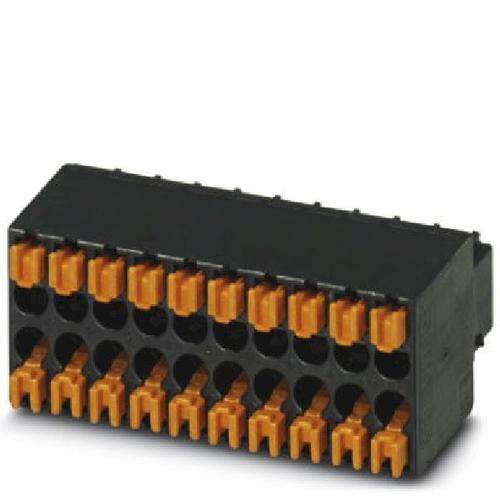

1844620
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 14POS STR 2.54MM
PDF
/
Buying Options
Total Price: USD $10.97
Unit Price: USD $10.971101
≥1 USD $10.971101
≥10 USD $10.350101
≥100 USD $9.764243
≥500 USD $9.211553
≥1000 USD $8.69014
Inventory: 5459
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Wire Gauge or Range - mm2 0.14-0.5mm2
Plug Wire Entry 180°
Positions Per Level 7
Voltage - IEC 160V
Wire Gauge or Range - AWG 20-26 AWG
Contact Mating Finish Gold
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 26 AWG
Current 6A
Number of Levels 2
Voltage 150V
Termination Style Screwless - Leg Spring, Push-In Spring
Pitch 0.100 2.54mm
Color Black
Number of Positions 14
Type Plug, Female Sockets
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON DFMC
Published 2015
Packaging Bulk
Physical
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 10 Weeks
