1844594
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

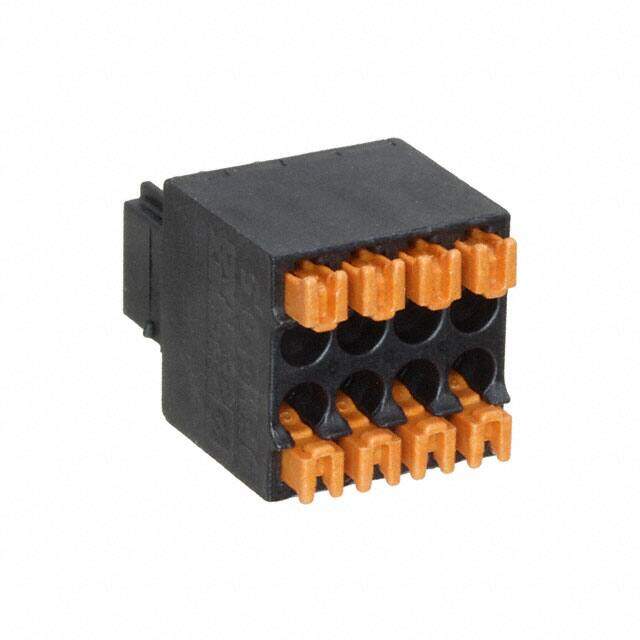

TERM BLOCK PLUG 8POS STR 2.54MM
PDF
/
Buying Options
Total Price: USD $5.57
Unit Price: USD $5.5704
≥1 USD $5.5704
≥10 USD $5.33192
≥100 USD $5.186368
≥500 USD $4.84704
≥1000 USD $4.459277
≥3000 USD $4.3758
Inventory: 349
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Fastening Method SPRING LOADED
Wire Gauge or Range - mm2 0.14-0.5mm2
Plug Wire Entry 180°
Safety Approval CUL; UL
Number of Ways 4
Positions Per Level 4
Voltage - IEC 160V
Wire Gauge or Range - AWG 20-26 AWG
Number of Decks 1
Contact Mating Finish Gold
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 26 AWG
Current 6A
Number of Levels 2
Voltage 150V
Termination Style Screwless - Leg Spring, Push-In Spring
Pitch 0.100 2.54mm
Number of Rows 2
Color Black
Number of Positions 8
Type Plug, Female Sockets
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON DFMC
Published 2015
Packaging Bulk
Physical
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
