1844333
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

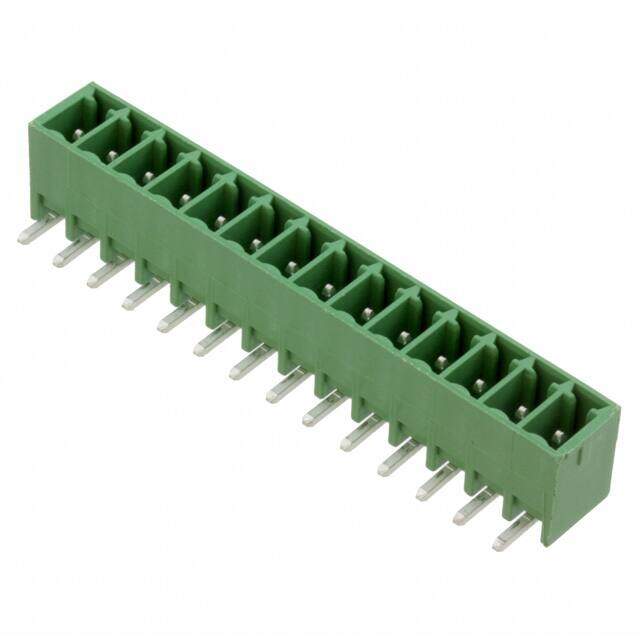

Pluggable Terminal Blocks 14 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $4.83
Unit Price: USD $4.8312
≥1 USD $4.8312
≥10 USD $4.7036
≥100 USD $4.3956
≥500 USD $4.043952
≥1000 USD $3.968237
Inventory: 99
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 50.4mm
Technical
Number of Positions Per Level 14
Current - IEC 12A
Header Orientation 90°, Right Angle
Safety Approval UL; VDE; CSA
Number of Ways 14
Voltage - IEC 250V
Number of Decks 1
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.285 7.25mm
Depth 9.2mm
Orientation Right Angle
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Additional Feature PBT, UL 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MC
Published 2011
Packaging Bulk
Physical
Weight 113.398093g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
