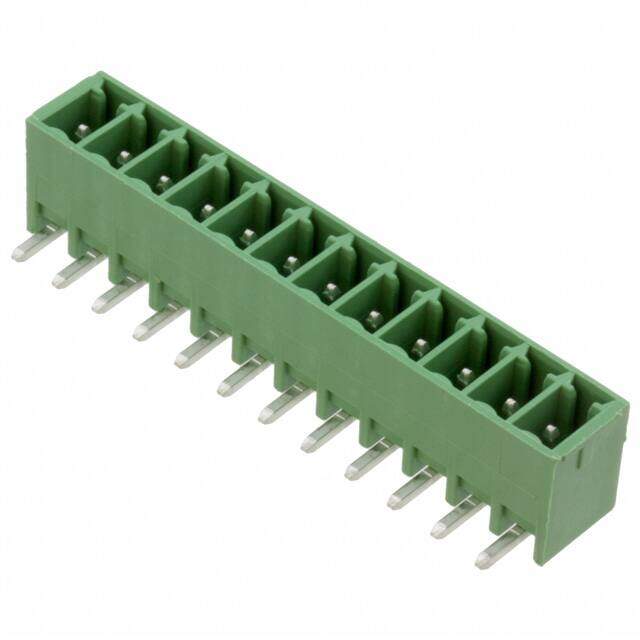

1844317 image
Favorite
1844317 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 12POS 90DEG 3.5MM
PDF
/
Buying Options
Total Price: USD $3.5
Unit Price: USD $3.5024
≥1 USD $3.5024
Inventory: 995
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Material PBT
Housing Material Polybutylene Terephthalate (PBT)
Weight 113.398093g

Technical

Packaging Bulk
Published 2006
Series COMBICON MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 160V
HTS Code 8536.69.40.40
Voltage - Rated DC 640mV
Pitch 0.138 3.50mm
Orientation Right Angle
Depth 9.2mm
Insulation Height 0.285 7.25mm
Current Rating 8A
Termination Style Solder
Approval Agency CSA, UL
Voltage 300V
Contact Tail Length 0.134 3.40mm
Max Current Rating 8A
Number of Levels 1
Current 8A
Number of Poles 12
Number of Decks 1
Voltage - IEC 250V
Number of Ways 12
Header Orientation 90°, Right Angle
Current - IEC 12A

Dimensions

Height 11.1mm
Length 8.4mm
Width 43.4mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
