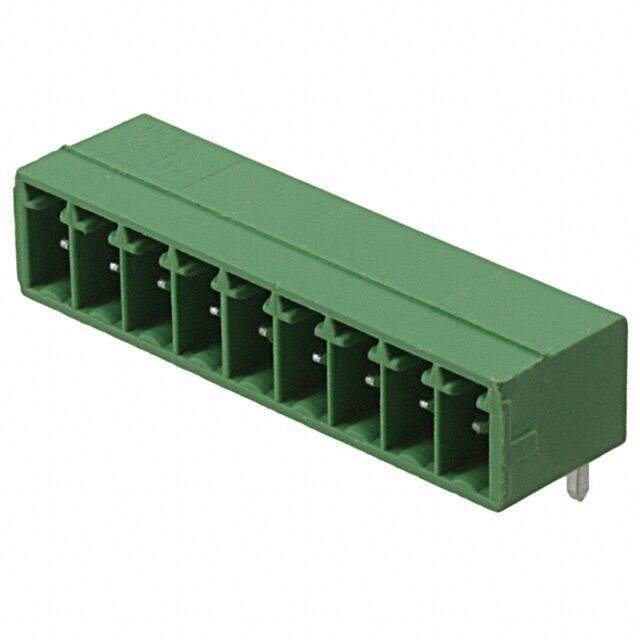

1844281 image
Favorite
1844281 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 9 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $3.24
Unit Price: USD $3.2384
≥1 USD $3.2384
≥10 USD $3.10112
≥100 USD $3.016816
≥500 USD $2.81952
≥1000 USD $2.593958
≥3000 USD $2.5454
Inventory: 630
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 32.9mm
Length 32.9mm
Height 14.5mm

Technical

Fastening Method CONNECTOR
Current - IEC 12A
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 9
Voltage - IEC 250V
Number of Decks 1
Number of Poles 9
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.134 3.40mm
Voltage 300V
Approval Agency CSA, UL
Termination Style Solder
Current Rating 8A
Insulation Height 0.285 7.25mm
Depth 9.2mm
Orientation Right Angle
Pitch 0.138 3.50mm
Voltage - Rated DC 640mV
Voltage - Rated 160V
Gender Male
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MC
Published 2010
Packaging Bulk

Physical

Weight 113.398093g
Housing Material Polybutylene Terephthalate (PBT)
Material PBT
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 7 Weeks
