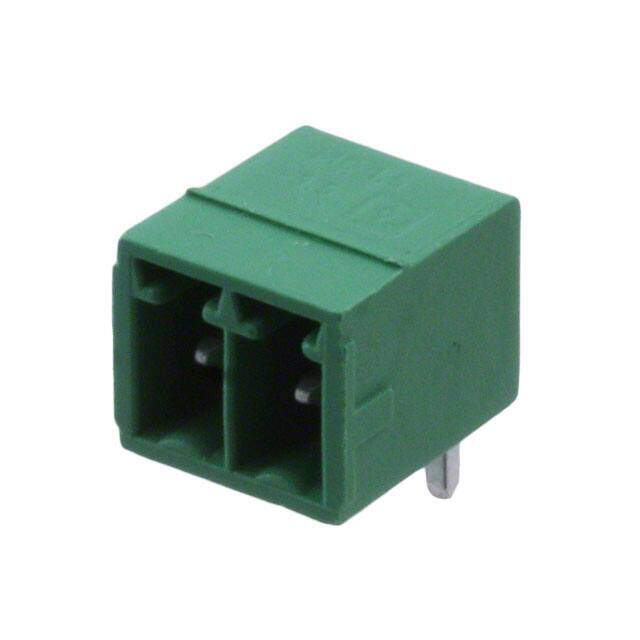

1844210
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 2POS 90DEG 3.5MM
PDF
/
Buying Options
Total Price: USD $0.76
Unit Price: USD $0.7568
≥1 USD $0.7568
≥10 USD $0.72864
≥100 USD $0.69696
≥500 USD $0.677952
≥1000 USD $0.6336
≥3000 USD $0.582912
Inventory: 1094
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Material PBT
Housing Material Polybutylene Terephthalate (PBT)
Weight 113.398093g
Technical
Packaging Bulk
Published 2005
Series COMBICON MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 160V
HTS Code 8536.69.40.40
Voltage - Rated DC 250V
Pitch 0.138 3.50mm
Orientation Right Angle
Depth 9.2mm
Insulation Height 0.285 7.25mm
Current Rating 8A
Termination Style Solder
Approval Agency CSA, UL
Voltage 300V
Contact Tail Length 0.134 3.40mm
Max Current Rating 8A
Number of Levels 1
Current 8A
Number of Poles 2
Number of Decks 1
Number of Ways 2
Safety Approval UL; VDE; CSA
Header Orientation 90°, Right Angle
Current - IEC 12A
Dimensions
Height 7.25mm
Length 8.4mm
Width 10.65mm
Thickness 3.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
