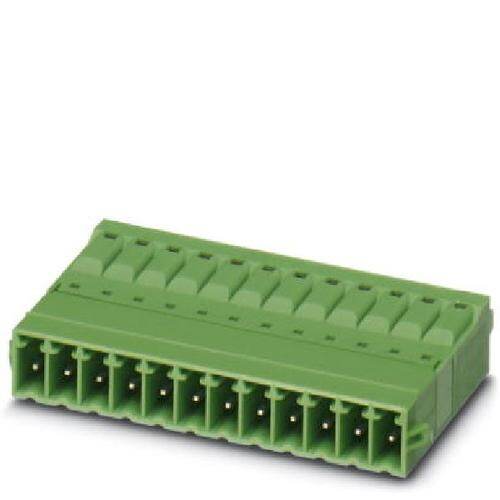

1844196
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 11POS STR 3.5MM
PDF
/
Inventory: 1155
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Voltage - IEC 320V
Wire Gauge or Range - AWG 16-24 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 24 AWG
Current 8A
Number of Levels 1
Voltage 150V
Termination Style Screwless - Leg Spring, Push-In Spring
Insulation Height 0.307 7.80mm
Pitch 0.138 3.50mm
Color Green
Number of Positions 11
Type Plug, Male Pins
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Locking Ramp
Series COMBICON IFMC
Published 2017
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 9 Weeks
