1844109
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

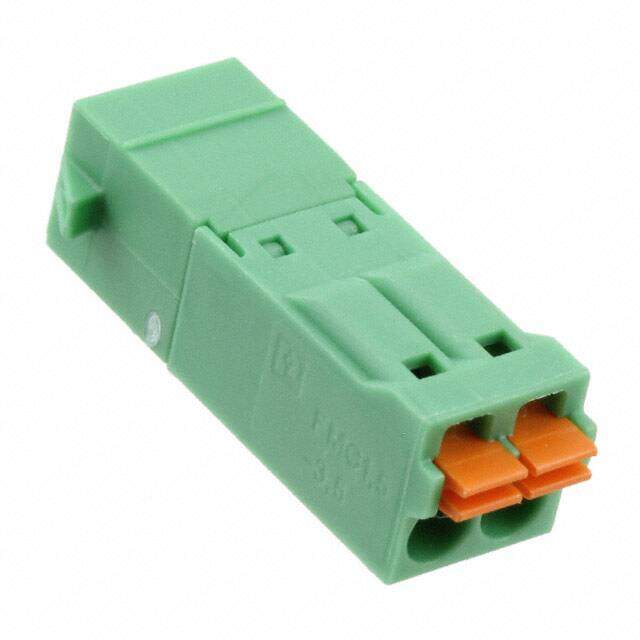

TERM BLOCK PLUG 2POS STR 3.5MM
PDF
/
Buying Options
Total Price: USD $3.82
Unit Price: USD $3.823107
≥1 USD $3.823107
≥10 USD $3.606707
≥100 USD $3.402554
≥500 USD $3.209953
≥1000 USD $3.028257
Inventory: 1106
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2017
Series COMBICON IFMC
Feature Locking Ramp
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Plug, Male Pins
Number of Positions 2
Color Green
Pitch 0.138 3.50mm
Insulation Height 0.307 7.80mm
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 150V
Number of Levels 1
Current 8A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 320V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 10mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
