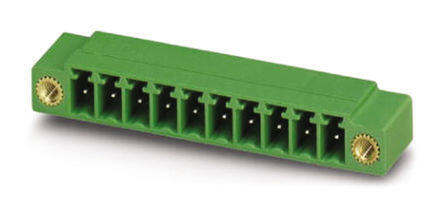

1843952
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 18 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $157.5
Unit Price: USD $3.15
≥50 USD $3.15
Inventory: 2283
Minimum: 50
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 18
Voltage - IEC 250V
Number of Decks 1
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.285 7.25mm
Orientation Right Angle
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Additional Feature PBT, UL 94V-0
Voltage - Rated 160V
Gender Male
Number of Rows 1
Color Green
Number of Positions 18
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON MC
Published 2011
Packaging Bulk
Physical
Weight 1.50003kg
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
