1843855
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

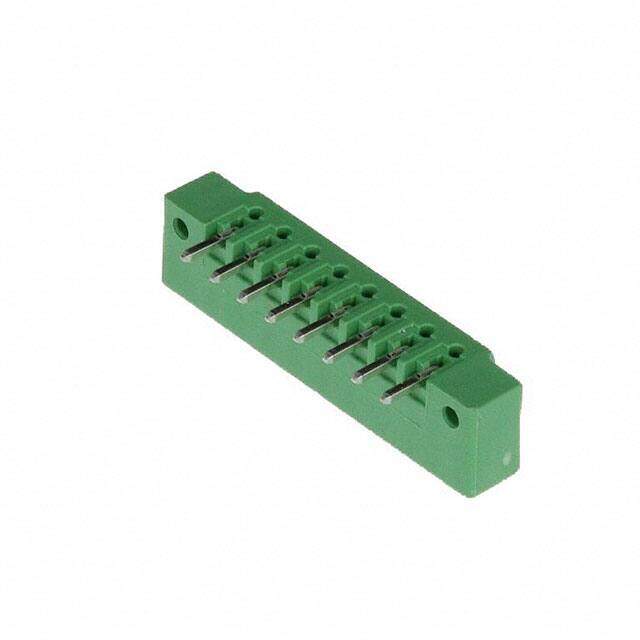

Pluggable Terminal Blocks 8 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $4.1
Unit Price: USD $4.1008
≥1 USD $4.1008
≥10 USD $3.9204
≥100 USD $3.813568
≥500 USD $3.564
≥1000 USD $3.27888
≥3000 USD $3.217491
Inventory: 158
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 113.398093g
Technical
Packaging Bulk
Published 2010
Series COMBICON MC
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PBT, UL 94V-0
Pitch 0.138 3.50mm
Orientation Right Angle
Insulation Height 0.285 7.25mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Max Current Rating 8A
Number of Levels 1
Current 8A
Number of Decks 1
Voltage - IEC 250V
Number of Ways 8
Safety Approval UL
Header Orientation 90°, Right Angle
Number of Positions Per Level 8
Dimensions
Height 10.65mm
Length 9.2mm
Width 38.3mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
