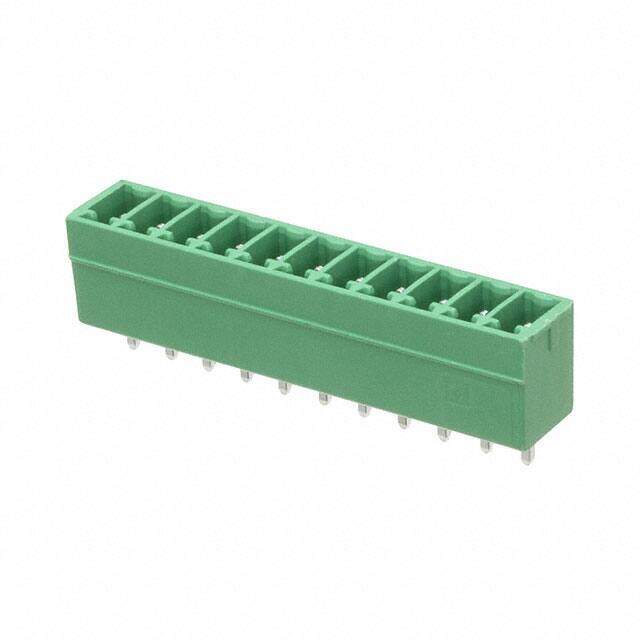

1843693 image
Favorite
1843693 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 11 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $3.79
Unit Price: USD $3.7928
≥1 USD $3.7928
≥10 USD $3.68632
≥100 USD $3.4452
≥500 USD $3.169584
≥1000 USD $3.110237
Inventory: 440
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 39.9mm
Length 39.9mm
Height 12.6mm

Technical

Header Orientation Vertical
Safety Approval UL
Number of Ways 11
Voltage - IEC 250V
Number of Decks 1
Number of Poles 11
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.134 3.40mm
Voltage 300V
Approval Agency CSA, UL
Termination Style Solder
Current Rating 8A
Insulation Height 0.362 9.20mm
Depth 7.25mm
Orientation Straight
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Voltage - Rated 160V
Gender Male
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MCV
Published 2005
Packaging Bulk

Physical

Weight 113.398093g
Housing Material Polybutylene Terephthalate (PBT)
Material PBT
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
