1843680
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

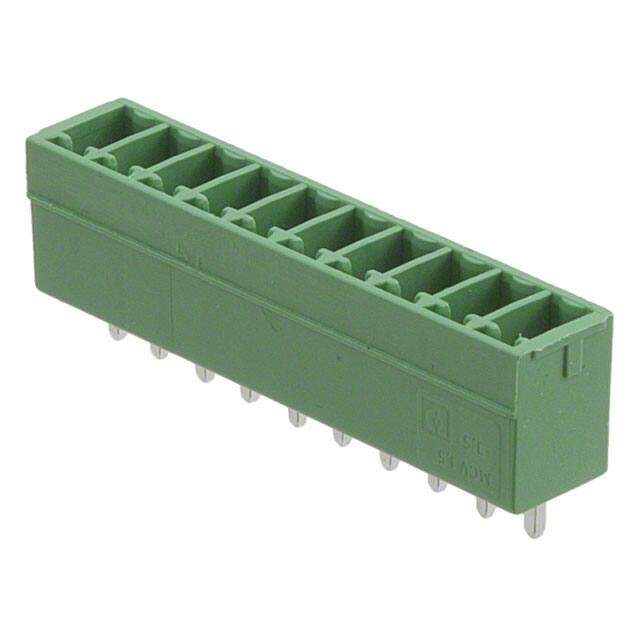

Phoenix Contact MINI COMBICON MCV, 10 Way 3.5mm Pitch Pluggable Terminal Block
PDF
/
Buying Options
Total Price: USD $3.63
Unit Price: USD $3.6344
≥1 USD $3.6344
≥10 USD $3.476
≥100 USD $3.381312
≥500 USD $3.16008
≥1000 USD $2.907274
≥3000 USD $2.852854
Inventory: 1937
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 7.25mm
Length 18.9mm
Height 12.6mm
Technical
Header Orientation Vertical
Safety Approval UL; VDE; CSA
Number of Ways 10
Voltage - IEC 250V
Number of Decks 1
Number of Poles 10
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.134 3.40mm
Voltage 300V
Lead Pitch 3.5mm
Approval Agency CSA, UL
Voltage - Rated AC 160V
Termination Style Solder
Current Rating 8A
Insulation Height 0.362 9.20mm
Depth 7.25mm
Orientation Straight
Pitch 0.138 3.50mm
Voltage - Rated DC 640mV
HTS Code 8536.69.40.40
Gender Male
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MCV
Published 2001
Packaging Bulk
Physical
Weight 113.398093g
Housing Material Polybutylene Terephthalate (PBT)
Material PBT
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
