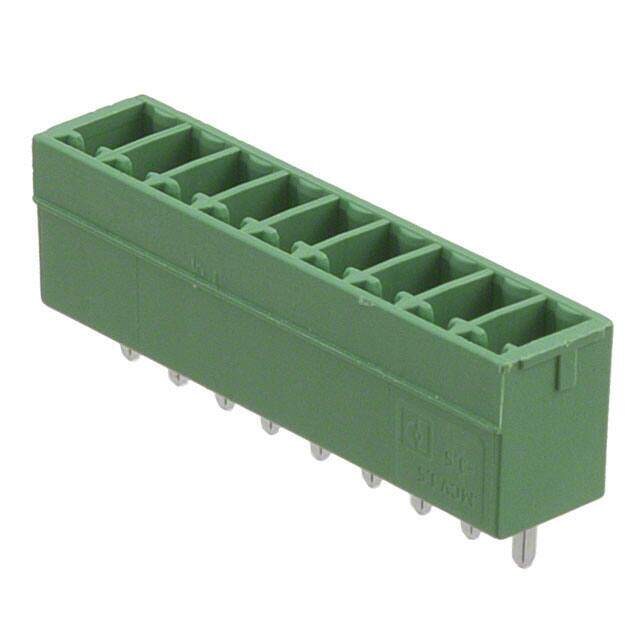

1843677 image
Favorite
1843677 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 9 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $3.26
Unit Price: USD $3.2648
≥1 USD $3.2648
≥10 USD $3.11872
≥100 USD $3.033888
≥500 USD $2.83536
≥1000 USD $2.608531
≥3000 USD $2.559709
Inventory: 1149
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Width 32.9mm
Length 32.9mm
Height 12.6mm

Technical

Header Orientation Vertical
Safety Approval UL; VDE; CSA
Number of Ways 9
Voltage - IEC 250V
Number of Decks 1
Number of Poles 9
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.134 3.40mm
Voltage 300V
Lead Pitch 3.5mm
Approval Agency CSA, UL
Voltage - Rated AC 160V
Termination Style Solder
Current Rating 8A
Insulation Height 0.362 9.20mm
Depth 7.25mm
Orientation Straight
Pitch 0.138 3.50mm
Voltage - Rated DC 640mV
Gender Male
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MCV
Published 2001
Packaging Bulk

Physical

Weight 113.398093g
Housing Material Polybutylene Terephthalate (PBT)
Material PBT
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 7 Weeks
