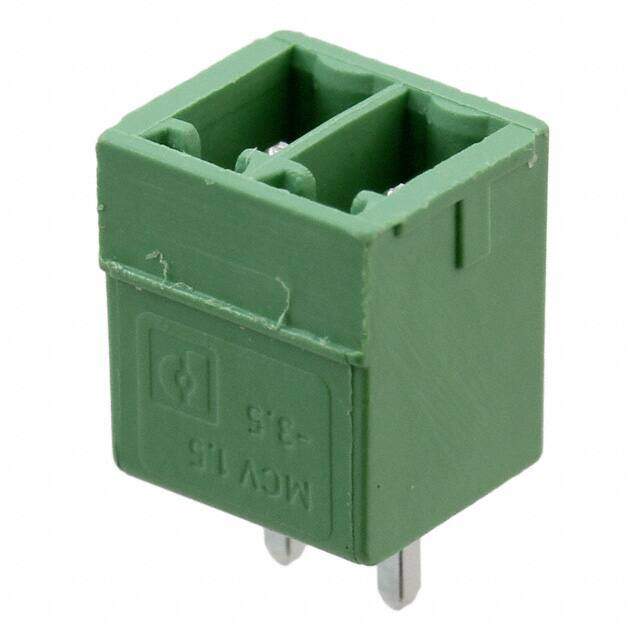

1843606 image
Favorite
1843606 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Conn Wire to Board HDR 2 POS 3.5mm Solder ST Thru-Hole
PDF
/
Buying Options
Total Price: USD $0.76
Unit Price: USD $0.7568
≥1 USD $0.7568
≥10 USD $0.72864
≥100 USD $0.69696
≥500 USD $0.677952
≥1000 USD $0.6336
≥3000 USD $0.582912
Inventory: 1323
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Material PBT
Housing Material Polybutylene Terephthalate (PBT)
Weight 113.398093g

Technical

Packaging Bulk
Published 2001
Series COMBICON MCV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Min Operating Temperature -40°C
Color Green
Number of Rows 1
Gender Male
HTS Code 8536.69.40.40
Voltage - Rated DC 640mV
Pitch 0.138 3.50mm
Orientation Straight
Depth 7.25mm
Insulation Height 0.362 9.20mm
Current Rating 8A
Termination Style Solder
Voltage - Rated AC 160V
Approval Agency CSA, UL
Lead Pitch 3.81mm
Voltage 300V
Contact Tail Length 0.134 3.40mm
Max Current Rating 8A
Number of Levels 1
Current 8A
Number of Poles 2
Number of Decks 1
Voltage - IEC 250V
Number of Ways 2
Safety Approval UL
Header Orientation Vertical
Fastening Method CONNECTOR

Dimensions

Height 9.35mm
Length 8.4mm
Width 7.25mm

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
