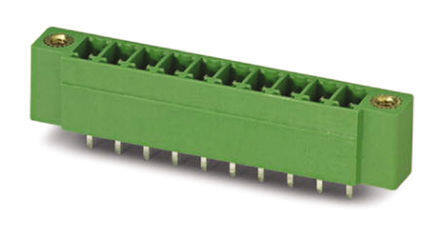

1843350
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 15 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $7.89
Unit Price: USD $7.887675
≥1 USD $7.887675
≥10 USD $7.441204
≥100 USD $7.020008
≥500 USD $6.622649
≥1000 USD $6.24778
Inventory: 8082
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 113.398093g
Technical
Packaging Bulk
Published 2014
Series COMBICON MCV
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 15
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PBT, 94V-0
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.362 9.20mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Current 8A
Number of Decks 1
Voltage - IEC 250V
Number of Ways 15
Safety Approval UL
Header Orientation Vertical
Dimensions
Height 12.7mm
Length 7.25mm
Width 62.8mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
