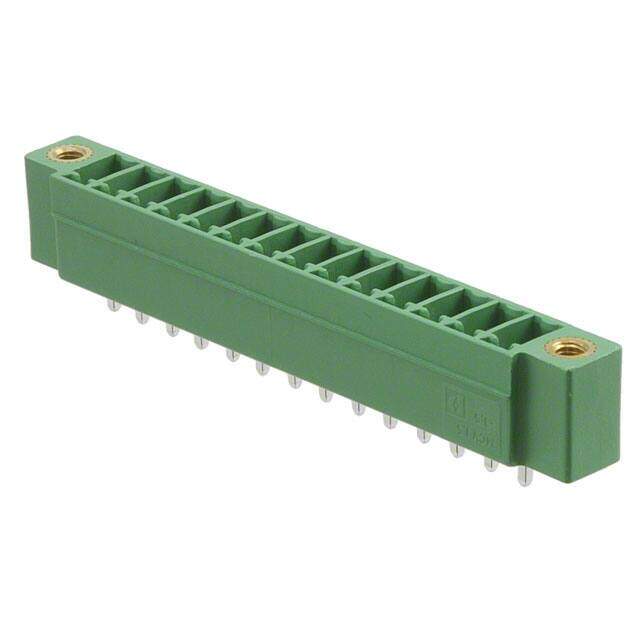

1843347
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
MINI COMBICON MCV Series 3.5mm Pitch Straight Pluggable Trm Blk; PCB Header
PDF
/
Buying Options
Total Price: USD $5.81
Unit Price: USD $5.808
≥1 USD $5.808
≥10 USD $5.65224
≥100 USD $5.28264
≥500 USD $4.860064
≥1000 USD $4.769037
Inventory: 79
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Material PBT
Housing Material Polybutylene Terephthalate (PBT)
Technical
Packaging Bulk
Published 2011
Series COMBICON MCV
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 160V
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Depth 7.25mm
Insulation Height 0.362 9.20mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Solder
Approval Agency CB, CSA, VDE, cULus
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 8A
Number of Levels 1
Current 8A
Number of Poles 14
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 250V
Number of Ways 14
Safety Approval UL
Header Orientation Vertical
Dimensions
Height 12.7mm
Length 59.3mm
Width 7.25mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
