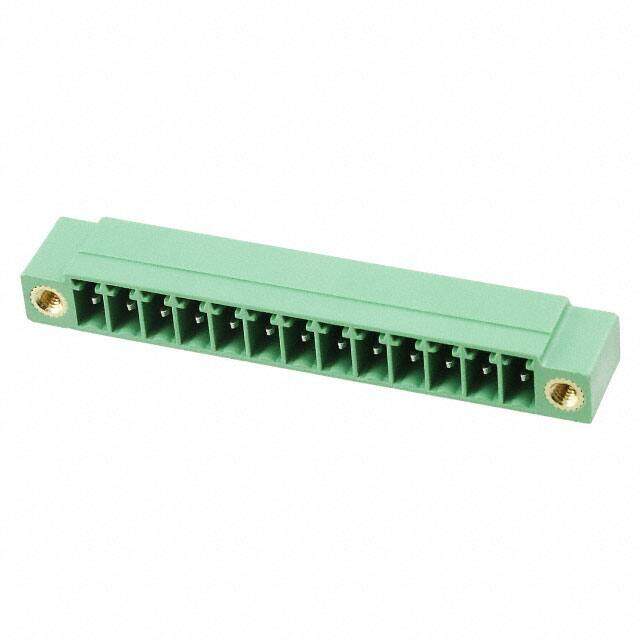

1843334
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pin enclosure - PCB MCV Total number of pins 13 Phoenix Contact 1843334 Contact spacing: 3.50 mm 50 pc(s)
PDF
/
Buying Options
Total Price: USD $5.58
Unit Price: USD $5.5792
≥1 USD $5.5792
≥10 USD $5.42344
≥100 USD $5.0688
≥500 USD $4.663296
≥1000 USD $4.576
Inventory: 80
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 55.8mm
Length 7.25mm
Height 12.7mm
Technical
Header Orientation Vertical
Safety Approval UL; VDE; CSA
Number of Ways 13
Voltage - IEC 250V
Number of Decks 1
Current 8A
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.362 9.20mm
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Additional Feature PBT, UL 94V-0
Number of Rows 1
Color Green
Number of Positions 13
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON MCV
Published 2015
Packaging Bulk
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
