RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

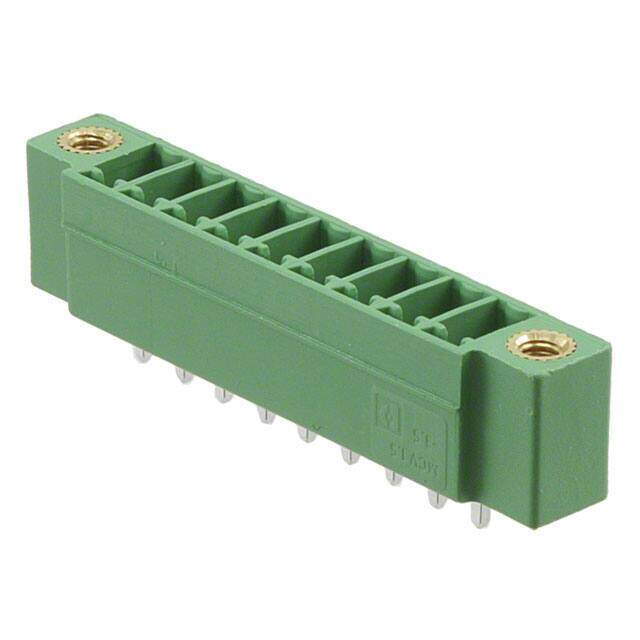

Description Pluggable Terminal Blocks 9 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $3.56
Unit Price: USD $3.5552
≥1 USD $3.5552
Inventory: 126
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Number of Positions Per Level 9
Header Orientation Vertical
Safety Approval UL
Number of Ways 9
Voltage - IEC 250V
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.362 9.20mm
Pitch 0.138 3.50mm
Voltage - Rated 160V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON MCV
Published 2011
Packaging Bulk

Physical

Weight 113.398093g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 4 Weeks
