1843237
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

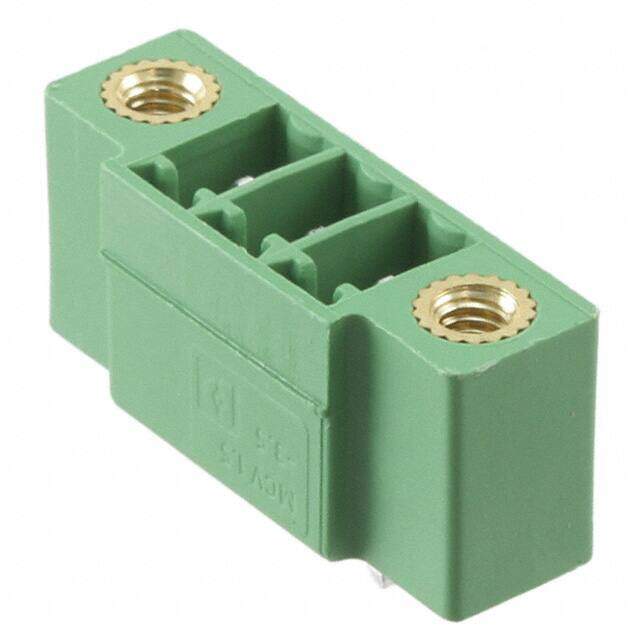

TERM BLOCK HDR 3POS VERT 3.5MM
PDF
/
Buying Options
Total Price: USD $2.6
Unit Price: USD $2.6048
≥1 USD $2.6048
≥10 USD $2.49568
≥100 USD $2.387088
≥500 USD $2.321968
≥1000 USD $2.17008
≥3000 USD $1.996474
Inventory: 557
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 20.8mm
Length 20.8mm
Height 12.7mm
Technical
Header Orientation Vertical
Safety Approval UL
Number of Ways 3
Voltage - IEC 250V
Number of Decks 1
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.362 9.20mm
Depth 7.25mm
Orientation Straight
Pitch 0.138 3.50mm
Additional Feature PBT, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 3
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON MCV
Published 2011
Packaging Bulk
Physical
Weight 1.010008g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
