1843114
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

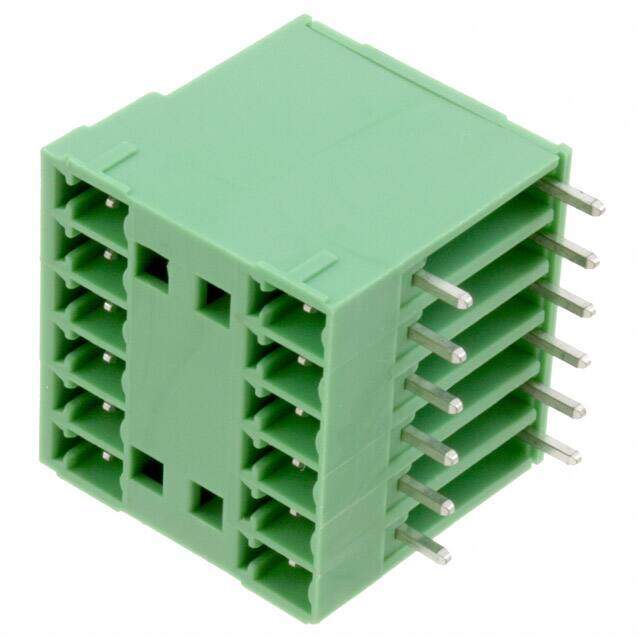

Conn Wire to Board HDR 12 POS 3.81mm Solder RA Thru-Hole
PDF
/
Buying Options
Total Price: USD $6.2
Unit Price: USD $6.1952
≥1 USD $6.1952
≥10 USD $6.02536
≥100 USD $5.63112
≥500 USD $5.180648
≥1000 USD $5.083654
Inventory: 197
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper
Mount Through Hole
Mounting Type Through Hole
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 117.000013g
Technical
Packaging Bulk
Published 2011
Series COMBICON MCD
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 12
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 160V
Additional Feature PBT, 94V-0
Pitch 0.150 3.81mm
Orientation Right Angle
Depth 21.9mm
Insulation Height 0.894 22.71mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Solder
Approval Agency CB, CSA, UL, VDE
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 8A
Number of Levels 2
Current 8A
Number of Poles 6
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 320V
Number of Ways 6
Safety Approval UL
Header Orientation 90°, Right Angle
Dimensions
Height 24.25mm
Length 24.25mm
Width 21.9mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
