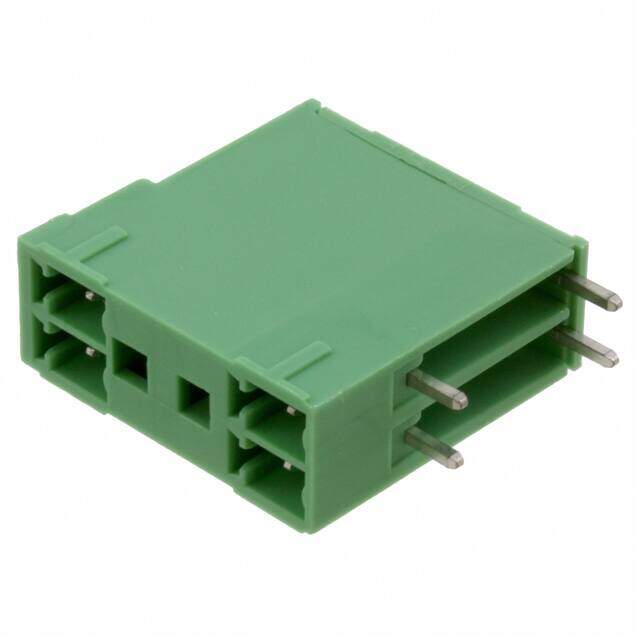

1843075 image
Favorite
1843075 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 2 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.08
Unit Price: USD $2.0768
≥1 USD $2.0768
≥10 USD $2.01696
≥100 USD $1.88496
≥500 USD $1.734128
≥1000 USD $1.701709
Inventory: 340
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Copper
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 117.000013g

Technical

Packaging Bulk
Published 2011
Series COMBICON MCD
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Color Green
Voltage - Rated 160V
Pitch 0.150 3.81mm
Orientation Right Angle
Depth 21.9mm
Insulation Height 0.894 22.71mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 8A
Current 8A
Contact Mating Finish Tin
Voltage - IEC 320V
Header Orientation 90°, Right Angle
Number of Positions Per Level 2

Dimensions

Height 21.9mm
Length 9.01mm
Width 26.2mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
