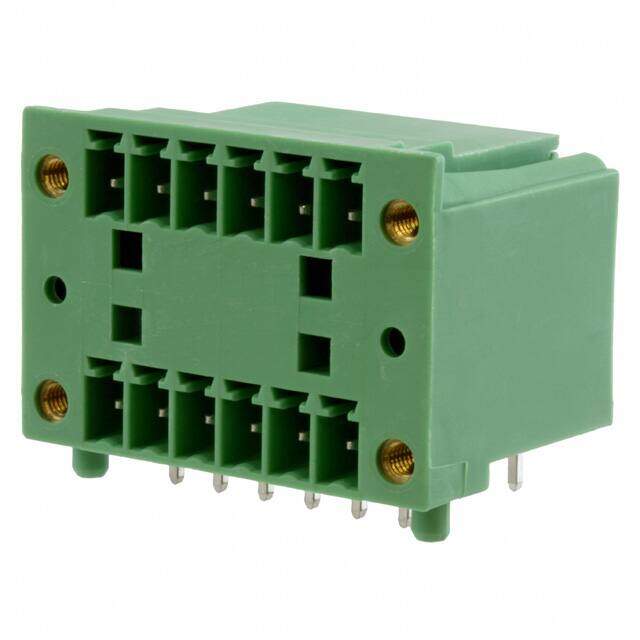

1842953
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 6 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $11.06
Unit Price: USD $11.0616
≥1 USD $11.0616
≥10 USD $10.7624
≥100 USD $10.0584
≥500 USD $9.253728
≥1000 USD $9.080509
Inventory: 130
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 117.000013g
Technical
Packaging Bulk
Published 2011
Series COMBICON MCD
Feature Board Guide, Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 12
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PBT, 94V-0
Pitch 0.150 3.81mm
Orientation Right Angle
Depth 21.9mm
Insulation Height 0.894 22.71mm
Reach Compliance Code unknown
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 8A
Number of Levels 2
Current 8A
Number of Decks 1
Voltage - IEC 320V
Positions Per Level 6
Number of Ways 6
Safety Approval UL
Header Orientation 90°, Right Angle
Dimensions
Height 26.2mm
Length 21.82mm
Width 33.25mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
