1842898
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

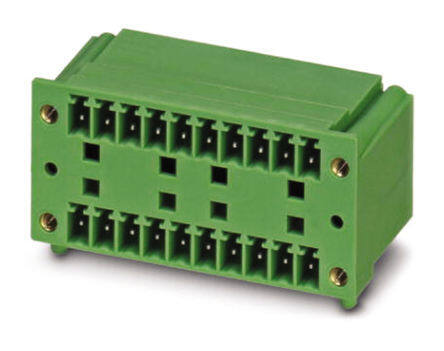

Pluggable Terminal Blocks 15 Pos 3.81mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $45.95
Unit Price: USD $45.954126
≥1 USD $45.954126
≥200 USD $18.335961
≥500 USD $17.72415
≥1000 USD $17.42087
Inventory: 1184
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation Vertical
Safety Approval UL
Number of Ways 15
Positions Per Level 15
Voltage - IEC 320V
Number of Decks 1
Contact Mating Finish Tin
Current 8A
Number of Levels 2
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.862 21.89mm
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Additional Feature PBT, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 30
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON MCDV
Published 2010
Packaging Bulk
Physical
Weight 118.999987g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 5 Weeks
