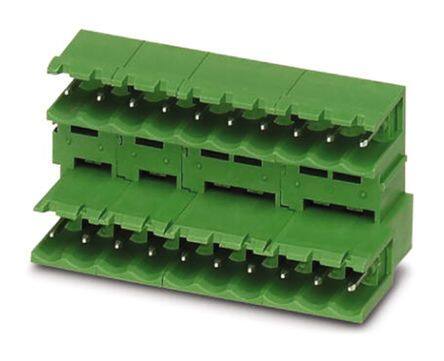

1842461
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON MDSTB RoHS Compliant 2014 Lead Free Terminal Block Header, Male Pins, Shrouded (4 Side) UL94HB 85C 15A 300V
PDF
/
Buying Options
Total Price: USD $16.59
Unit Price: USD $16.588
≥1 USD $16.588
≥10 USD $16.13568
≥100 USD $15.07968
≥500 USD $13.873376
≥1000 USD $13.6136
Inventory: 94
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 159.000001g
Technical
Packaging Bulk
Published 2014
Series COMBICON MDSTB
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 24
Max Operating Temperature 85°C
Min Operating Temperature 0°C
Color Green
Number of Rows 2
Voltage - Rated 250V
Additional Feature POLYBUTYLENE TEREPHTHALATE, 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Depth 3.15mm
Insulation Height 0.933 23.70mm
Current Rating 10A
Termination Style Solder
Housing Color Black
Voltage 300V
Contact Tail Length 0.138 3.50mm
ELV Compliant
Number of Levels 2
Current 15A
Number of Decks 2
Voltage - IEC 400V
Positions Per Level 12
Number of Ways 12
Safety Approval UL; CSA
Header Orientation 90°, Right Angle
Current - IEC 10A
Dimensions
Height 27.2mm
Length 3.1mm
Width 73.66mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 HB
Lead Free Lead Free
