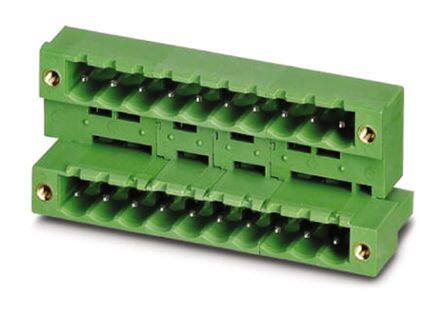

1842364
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 2 Pos 5.08mm pitch Through Hole Header
PDF
/
Inventory: 6433
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method PLUG IN
Current - IEC 10A
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 2
Positions Per Level 2
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Current 15A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 10A
Insulation Height 0.933 23.70mm
Pitch 0.200 5.08mm
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 4
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON MDSTB
Published 2011
Packaging Bulk
Physical
Weight 3.175147kg
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
