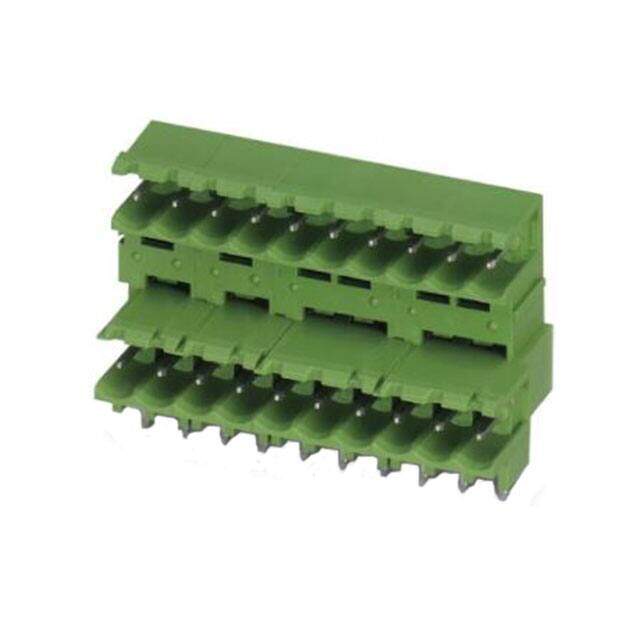

1842306 image
Favorite
1842306 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 22POS 5.08MM
PDF
/
Buying Options
Total Price: USD $41.18
Unit Price: USD $41.180421
≥1 USD $41.180421
≥200 USD $16.432256
≥500 USD $15.882151
≥1000 USD $15.611694
Inventory: 1174
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Contact Plating Silver, Tin
Mounting Type Through Hole

Technical

Packaging Bulk
Published 2015
Series COMBICON MDSTBW
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 22
Color Green
Number of Rows 2
Additional Feature PA
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Reach Compliance Code unknown
Termination Style Solder
Number of Levels 2
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 2
Current - UL 15A
Voltage - IEC 400V
Positions Per Level 11
Number of Ways 11
Header Orientation 90°, Right Angle
Current - IEC 10A
Rated Current 10A

Compliance

RoHS Status RoHS Compliant
