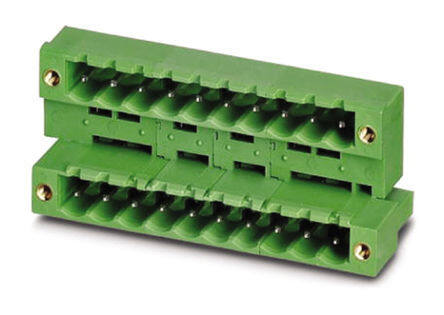

1842270
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 5.08mm pitch Header
PDF
/
Buying Options
Total Price: USD $24.28
Unit Price: USD $24.282086
≥1 USD $24.282086
≥200 USD $9.689202
≥500 USD $9.364916
≥1000 USD $9.206055
Inventory: 1152
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 12.960013g
Technical
Packaging Bulk
Published 2011
Series COMBICON MDSTBW
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 16
Color Green
Number of Rows 2
Voltage - Rated 250V
Additional Feature PA, UL 94V0
Pitch 0.200 5.08mm
Current Rating 10A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 2
Current 15A
Contact Mating Finish Tin
Number of Decks 2
Voltage - IEC 400V
Positions Per Level 8
Number of Ways 8
Safety Approval UL
Header Orientation 90°, Right Angle
Current - IEC 10A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
