1842267
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

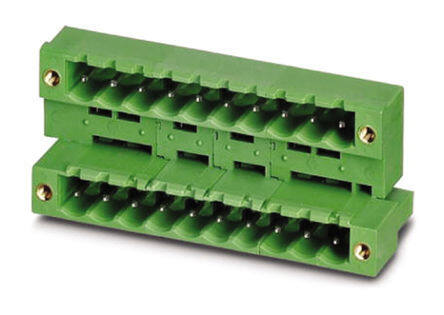

Pluggable Terminal Blocks 7 Pos 5.08mm pitch Header
PDF
/
Inventory: 6122
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 160.000002g
Technical
Packaging Bulk
Published 2011
Series COMBICON MDSTBW
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 14
Color Green
Number of Rows 2
Voltage - Rated 250V
Additional Feature PA
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Current Rating 10A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 2
Current 15A
Contact Mating Finish Tin
Number of Decks 2
Voltage - IEC 400V
Positions Per Level 7
Number of Ways 7
Header Orientation 90°, Right Angle
Current - IEC 10A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
