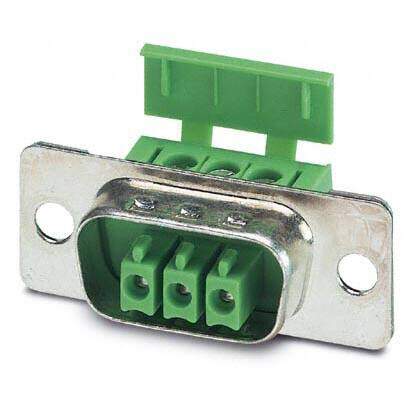

1841909 image
Favorite
1841909 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Conn Terminal Blocks PL 3 POS 3.5mm Screw RA Panel Mount 8A
PDF
/
Buying Options
Total Price: USD $12.43
Unit Price: USD $12.4256
≥1 USD $12.4256
≥10 USD $12.08416
≥100 USD $11.29392
≥500 USD $10.390424
≥1000 USD $10.195891
Inventory: 476
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Plating Tin
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 5.329994g

Technical

Packaging Bulk
Published 1999
Series POWER SUBCON
JESD-609 Code e3
Feature DB9 Shape, Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Plug
Type Plug, Female Sockets
Number of Positions 3
Color Green
Gender Female
Voltage - Rated 250V
Contact Finish - Mating TIN
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.138 3.50mm
Orientation Right Angle
Depth 16mm
Insulation Height 0.492 12.50mm
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Approval Agency CSA, cULus
Number of Contacts 3
UL Flammability Code 94V-0
Empty Shell NO
Voltage 300V
Max Supply Voltage 250V
Shell Size 1/E
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Wire Gauge or Range - AWG 14-30 AWG
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Plug Wire Entry 180°
Insulation Non-Insulated
Wire Gauge or Range - mm2 0.14-1.5mm2
Screw Size M2

Dimensions

Height 16mm
Length 30.8mm
Width 30.8mm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
