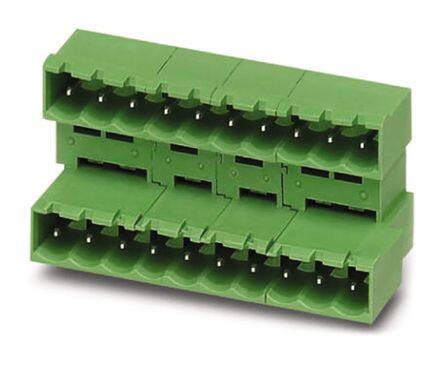

1841284
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Header, nominal current: 8 A, rated voltage: 160 V, pitch: 3.81 mm, no. of positions: 19, mounting: Soldering
PDF
/
Inventory: 1168
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 19
Voltage - IEC 250V
Number of Decks 1
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.285 7.25mm
Pitch 0.150 3.81mm
HTS Code 8536.69.40.40
Additional Feature PBT, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
Number of Positions 19
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MC
Published 2014
Packaging Bulk
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 5 Weeks
