1840418
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

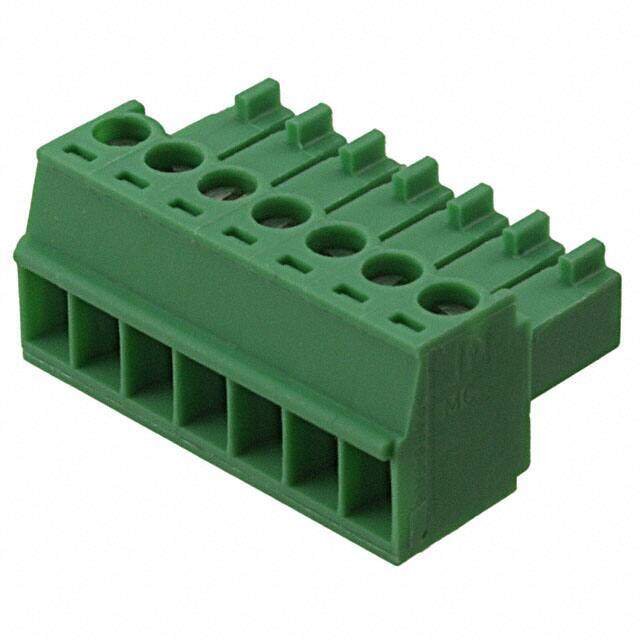

Conn Terminal Blocks F 7 POS 3.5mm Screw RA Cable Mount 8A
PDF
/
Buying Options
Total Price: USD $8.75
Unit Price: USD $8.753194
≥1 USD $8.753194
≥10 USD $8.257734
≥100 USD $7.790314
≥500 USD $7.349352
≥1000 USD $6.933348
Inventory: 940
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 24.5mm
Length 24.5mm
Height 16.1mm
Technical
Stripping Length 7mm
Screw Size M2
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 7
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 14-30 AWG
Number of Decks 1
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Max Current Rating 8A
Max Supply Voltage 160V
Voltage 300V
Number of Contacts 7
Approval Agency CB, CSA, UL, VDE, cULus
Voltage - Rated AC 160V
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Insulation Height 0.437 11.10mm
Depth 16.1mm
Orientation Right Angle
Pitch 0.138 3.50mm
Voltage - Rated DC 160V
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Plug, Screw
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series MINI-COMBICON MC
Published 2008
Packaging Bulk
Physical
Weight 97.999992g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Insulation Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 6 Weeks
