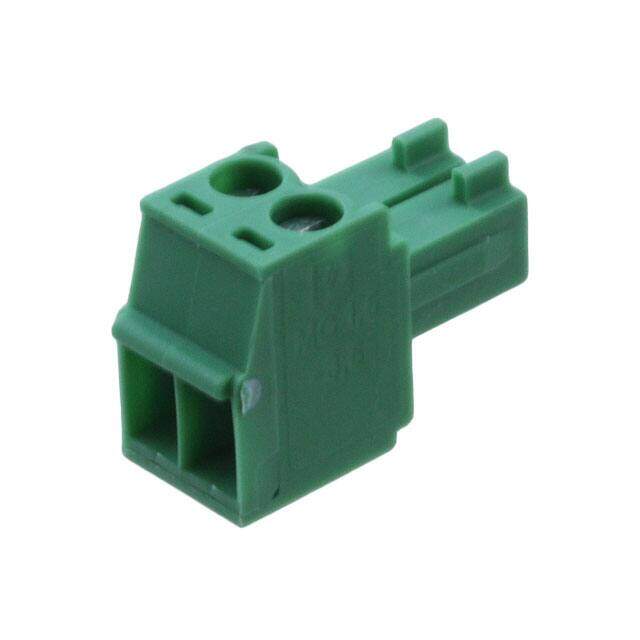

1840366 image
Favorite
1840366 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 2POS STR 3.5MM
PDF
/
Buying Options
Total Price: USD $1.04
Unit Price: USD $1.04281
≥1 USD $1.04281
≥10 USD $0.98378
≥100 USD $0.92809
≥500 USD $0.87556
≥1000 USD $0.826
≥3000 USD $0.77925
Inventory: 7734
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 97.999992g

Technical

Packaging Bulk
Published 2008
Series MINI-COMBICON MC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Additional Feature PA, UL 94V-0
HTS Code 8536.69.40.40
Voltage - Rated DC 160V
Pitch 0.138 3.50mm
Orientation Right Angle
Depth 16.1mm
Insulation Height 0.437 11.10mm
Current Rating 8A
Termination Style Screw - Rising Cage Clamp
Voltage - Rated AC 160V
Approval Agency CB, CSA, UL, VDE, cULus
Number of Contacts 2
Voltage 300V
Max Supply Voltage 160V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 2
Safety Approval UL; VDE; CSA
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Screw Size M2
Stripping Length 7mm

Dimensions

Height 11.1mm
Length 7mm
Width 16.1mm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
