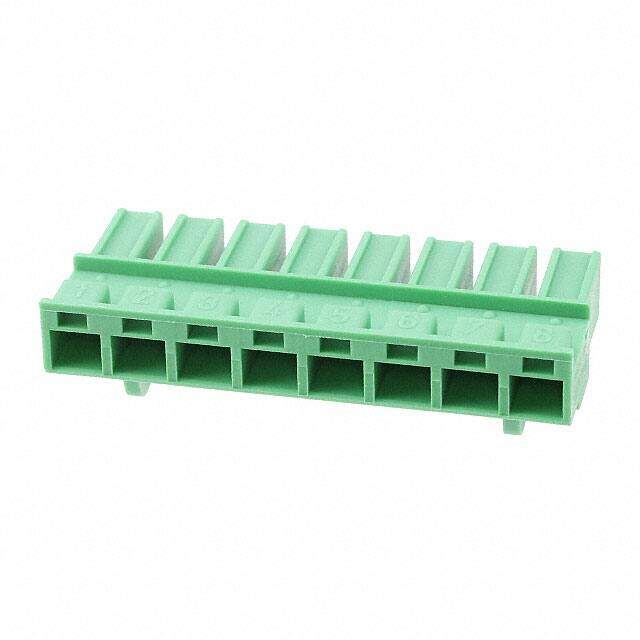

1840133 image
Favorite
1840133 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 8 Pos 7.62mm pitch Plug 20-14 AWG Screw
PDF
/
Buying Options
Total Price: USD $5.46
Unit Price: USD $5.460748
≥1 USD $5.460748
≥10 USD $5.151651
≥100 USD $4.860047
≥500 USD $4.584954
≥1000 USD $4.325422
Inventory: 2875
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 7.519995g

Technical

Packaging Bulk
Published 2009
Series COMBICON PCC
Feature Retention Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug Housing for Female Sockets
Number of Positions 8
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature PA, 94V-0
Pitch 0.300 7.62mm
Insulation Height 0.677 17.20mm
Current Rating 20A
Voltage 600V
Number of Levels 1
Current 10A
Wire Gauge (Max) 14 AWG
Wire Gauge (Min) 20 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-20 AWG
Voltage - IEC 1kV
Number of Ways 8
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.5-2.5mm2
Current - IEC 20A
Wire Cross Section 2.5 mm2
Fastening Method CRIMP

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
