1840052
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

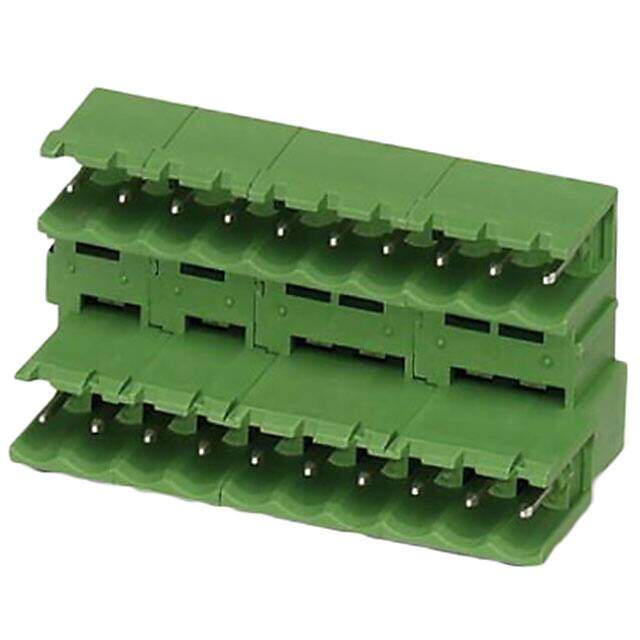

Pluggable Terminal Blocks 8 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $8.03
Unit Price: USD $8.0344
≥1 USD $8.0344
≥10 USD $7.81352
≥100 USD $7.30224
≥500 USD $6.718096
≥1000 USD $6.592291
Inventory: 366
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 4.000004g
Technical
Packaging Bulk
Published 2011
Series COMBICON MDSTB
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 16
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT
Pitch 0.200 5.08mm
Insulation Height 0.933 23.70mm
Current Rating 10A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.126 3.20mm
Number of Levels 2
Current 15A
Number of Decks 1
Voltage - IEC 400V
Positions Per Level 8
Number of Ways 8
Safety Approval UL; CSA
Header Orientation 90°, Right Angle
Current - IEC 10A
Dimensions
Height 26.9mm
Length 22.1mm
Width 43.18mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
