RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

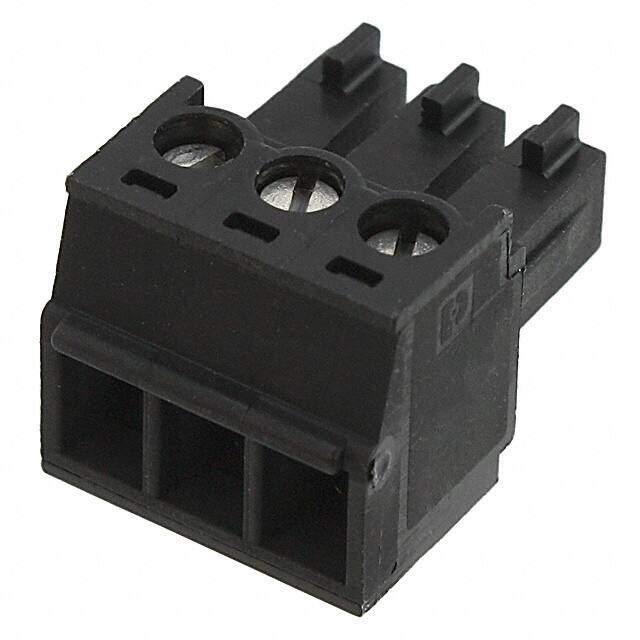

Description TERM BLOCK PLUG 3POS STR 3.81MM
PDF
/
Buying Options
Total Price: USD $2.63
Unit Price: USD $2.6312
≥1 USD $2.6312
≥10 USD $2.55904
≥100 USD $2.39184
≥500 USD $2.200528
≥1000 USD $2.159309
Inventory: 36
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 16.1mm
Length 11.1mm
Height 12.22mm

Technical

Screw Size M2
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Safety Approval CB; CCA; CUL; GOST; UL; VDE
Number of Ways 3
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 160V
Wire Gauge or Range - AWG 14-30 AWG
Number of Decks 1
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Voltage 300V
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Reach Compliance Code not_compliant
Insulation Height 0.437 11.10mm
Pitch 0.150 3.81mm
Additional Feature SAFETY APPROVAL: CSA
Voltage - Rated 160V
Number of Rows 1
Color Black
Number of Positions 3
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON MC
Published 2011
Packaging Bulk

Physical

Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 6 Weeks
