1837365
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

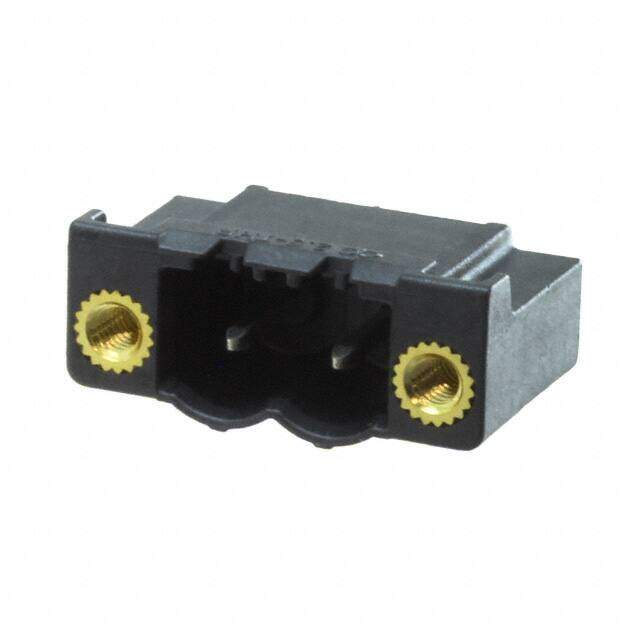

TERM BLOCK HDR 2POS BLK
PDF
/
Buying Options
Total Price: USD $1.98
Unit Price: USD $1.98
≥1 USD $1.98
Inventory: 117
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -40°C
Packaging Bulk
Published 2017
Series COMBICON CCV
Feature Mating Flange
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 2
Color Black
Pitch 0.197 5.00mm
Insulation Height 0.472 12.00mm
Reach Compliance Code not_compliant
Termination Style Solder
Contact Tail Length 0.079 2.00mm
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 16A
Header Orientation Vertical
Current - IEC 12A
Compliance
RoHS Status Non-RoHS Compliant
