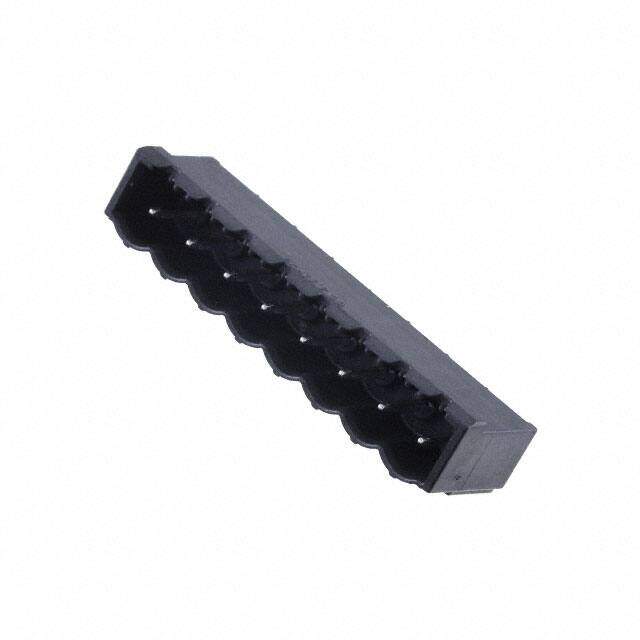

1836405
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
CCA 2,5/ 8-G P20 THR
PDF
/
Buying Options
Total Price: USD $1.91
Unit Price: USD $1.9096
≥1 USD $1.9096
Inventory: 128
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Current - IEC 12A
Header Orientation 90°, Right Angle
Current - UL 16A
Voltage - UL 300V
Contact Mating Finish Tin
Number of Levels 1
Contact Tail Length 0.079 2.00mm
Termination Style Solder
Insulation Height 0.337 8.56mm
Pitch 0.197 5.00mm
Color Black
Number of Positions 8
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON CCA
Published 2017
Packaging Bulk
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Supply Chain
Factory Lead Time 6 Weeks
