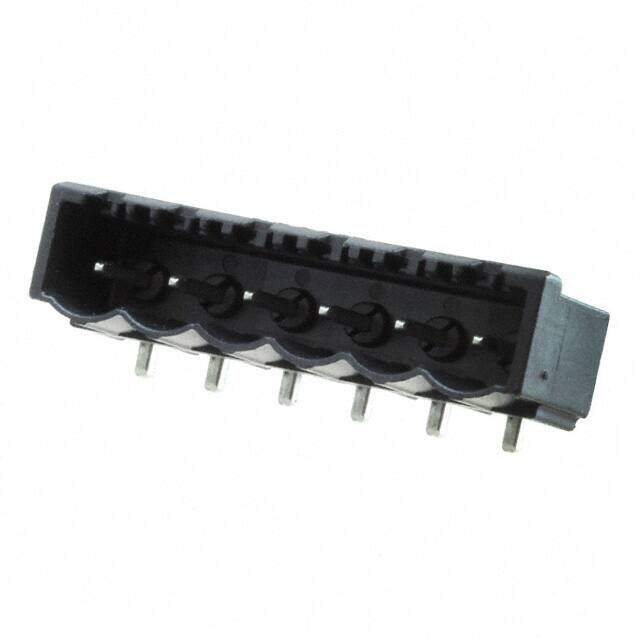

1836382
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
CCA 2,5/ 6-G P20 THR
PDF
/
Buying Options
Total Price: USD $1.72
Unit Price: USD $1.716
≥1 USD $1.716
≥10 USD $1.66936
≥100 USD $1.56024
≥500 USD $1.435456
≥1000 USD $1.408563
Inventory: 100
Minimum: 1
-
+
Technical Details
Technical
Color Black
Pitch 0.197 5.00mm
Insulation Height 0.337 8.56mm
Termination Style Solder
Contact Tail Length 0.079 2.00mm
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 16A
Header Orientation 90°, Right Angle
Current - IEC 12A
Number of Positions 6
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON CCA
Published 2018
Packaging Bulk
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Physical
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Supply Chain
Factory Lead Time 6 Weeks
