1836325
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

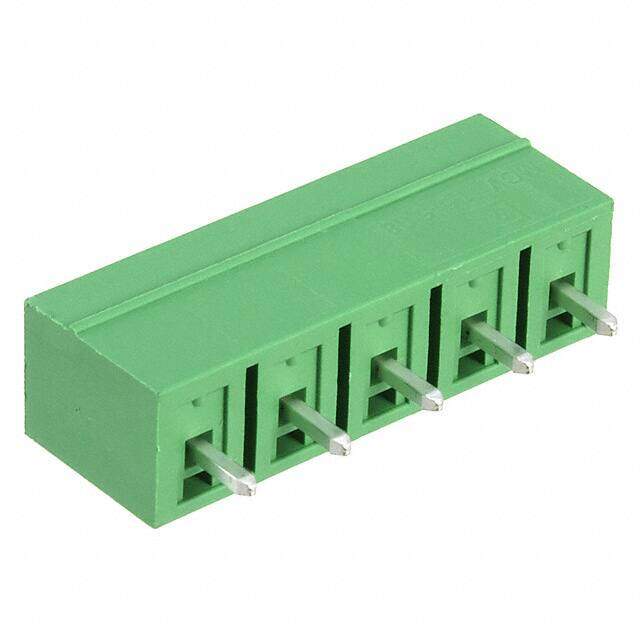

Pluggable Terminal Blocks 5 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $1.8
Unit Price: USD $1.7952
≥1 USD $1.7952
≥10 USD $1.74592
≥100 USD $1.63152
≥500 USD $1.501016
≥1000 USD $1.472909
Inventory: 126
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 122.999991g
Technical
Packaging Bulk
Published 2011
Series COMBICON MCV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 5
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PBT, 94V-0
Pitch 0.200 5.08mm
Orientation Straight
Depth 7.25mm
Insulation Height 0.362 9.20mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Max Current Rating 8A
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 400V
Number of Ways 5
Safety Approval UL
Header Orientation Vertical
Dimensions
Height 12.6mm
Length 25.4mm
Width 25.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
