1836228
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

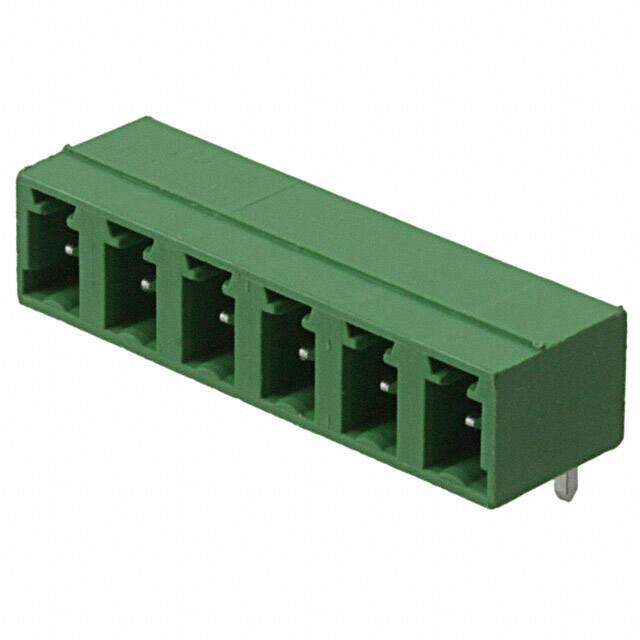

Pluggable Terminal Blocks 6 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.15
Unit Price: USD $2.1472
≥1 USD $2.1472
≥10 USD $2.08472
≥100 USD $1.94832
≥500 USD $1.792472
≥1000 USD $1.758909
Inventory: 74
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 30.48mm
Length 30.48mm
Height 10.75mm
Technical
Test Voltage 4kV
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 6
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Number of Poles 6
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Contact Gender Male
Termination Style Solder
Current Rating 8A
Insulation Height 0.285 7.25mm
Depth 9.2mm
Orientation Right Angle
Pitch 0.200 5.08mm
Additional Feature PBT, 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MC
Published 2011
Packaging Bulk
Physical
Weight 121.99999g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper
Supply Chain
Factory Lead Time 4 Weeks
