1835478
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

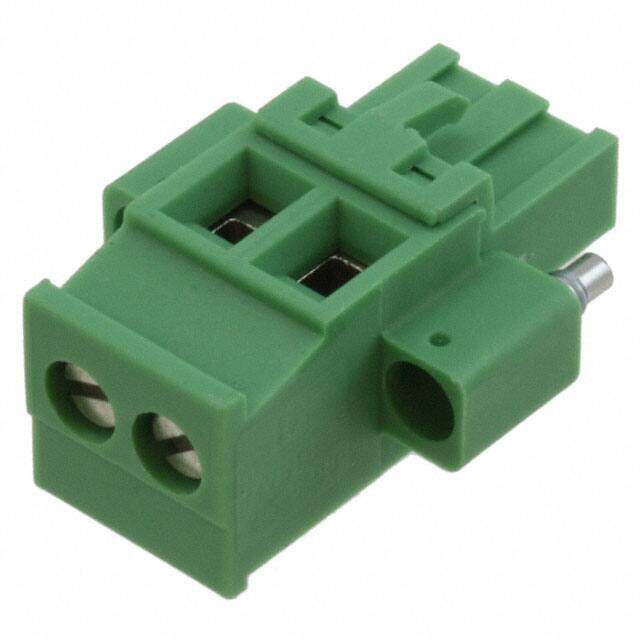

Pluggable Terminal Blocks 2 Pos 5mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $2.32
Unit Price: USD $2.315657
≥1 USD $2.315657
≥10 USD $2.184587
≥100 USD $2.060924
≥500 USD $1.944267
≥1000 USD $1.834221
Inventory: 1466
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 1.59982kg
Technical
Packaging Bulk
Published 2010
Series COMBICON MVSTBR
Feature Mating Flange, Retention Latches (Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 2
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature POLYAMIDE, 94V-0
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Insulation Height 1.024 26.01mm
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 2
Safety Approval UL; CSA
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Current - IEC 12A
Screw Size M3
Dimensions
Height 26mm
Length 12.6mm
Width 26mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
